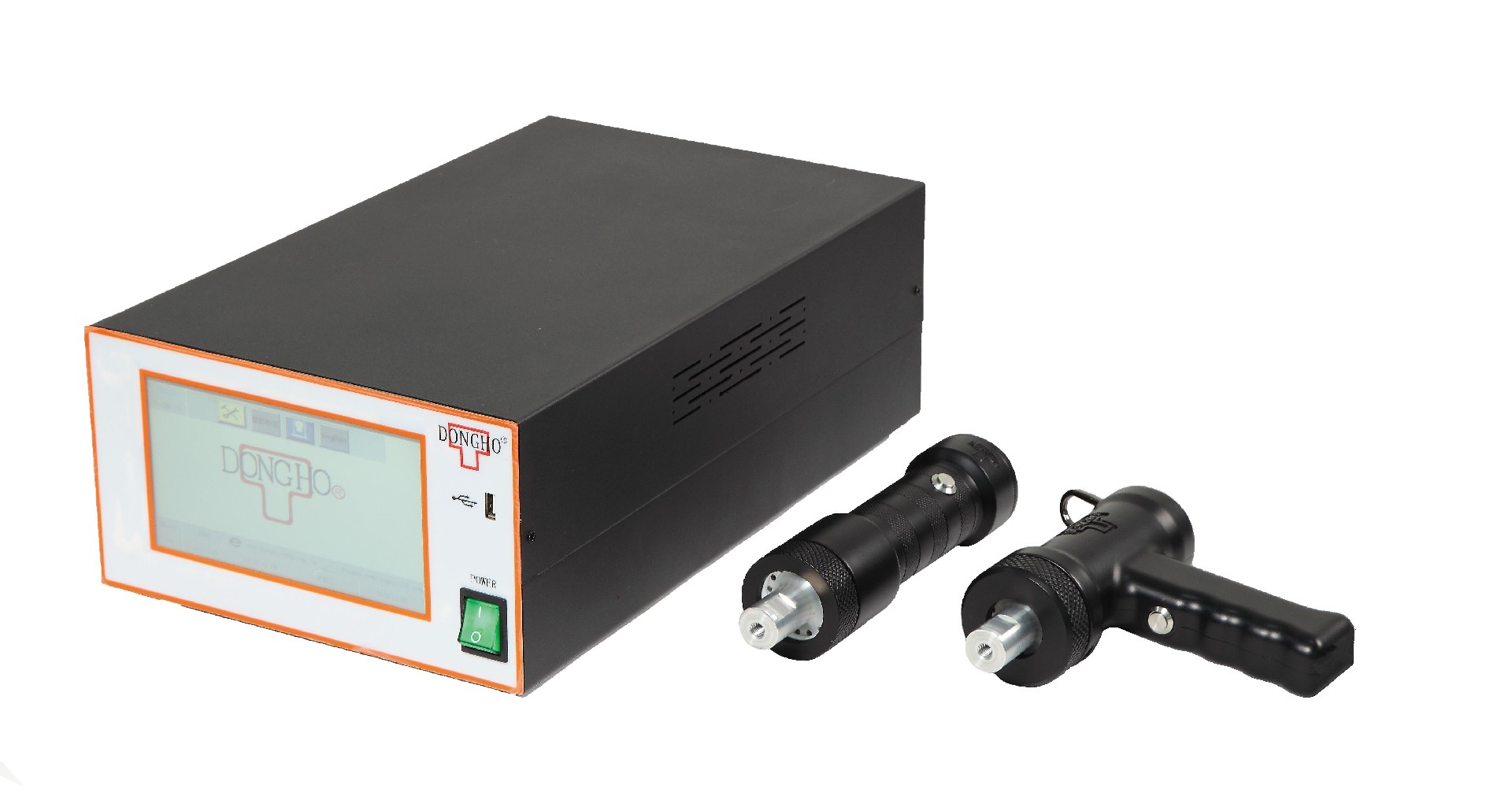

Ultrasonic Plastic Welding Machine - GSH series
The GSH series handheld ultrasonic welder is equipped with an ergonomically designed handle, ultra light weight and flexible in use. The transducer in the handle is equipped with a compressed air cooling port for extended service life. The digital ultrasonic generator has a power output of 1000W - 2000W and is available in frequencies of 20KHZ,35KHz. Support for equipping different versions for specific applications.

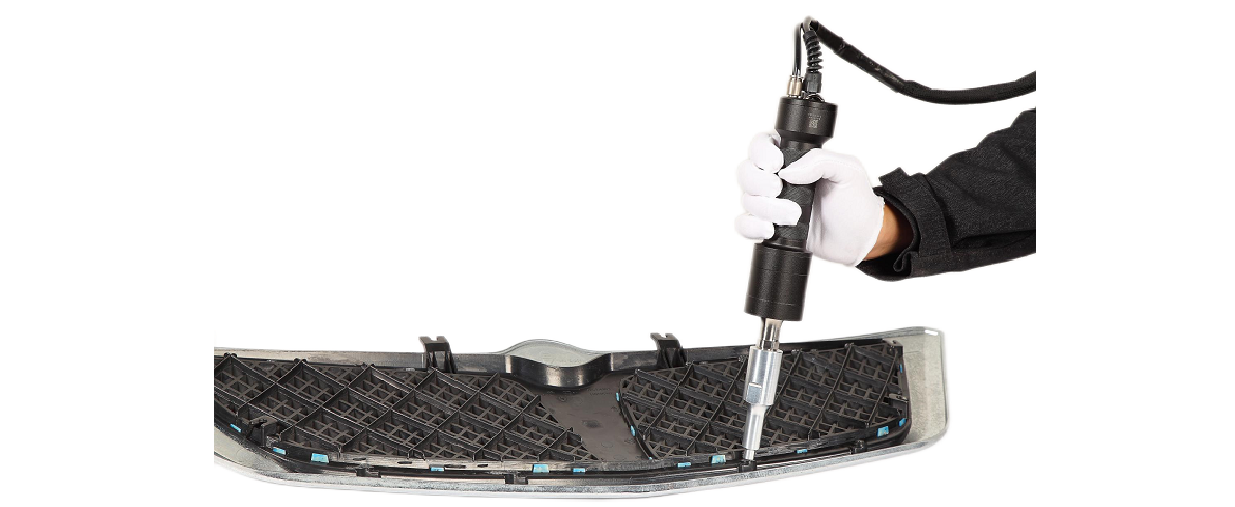

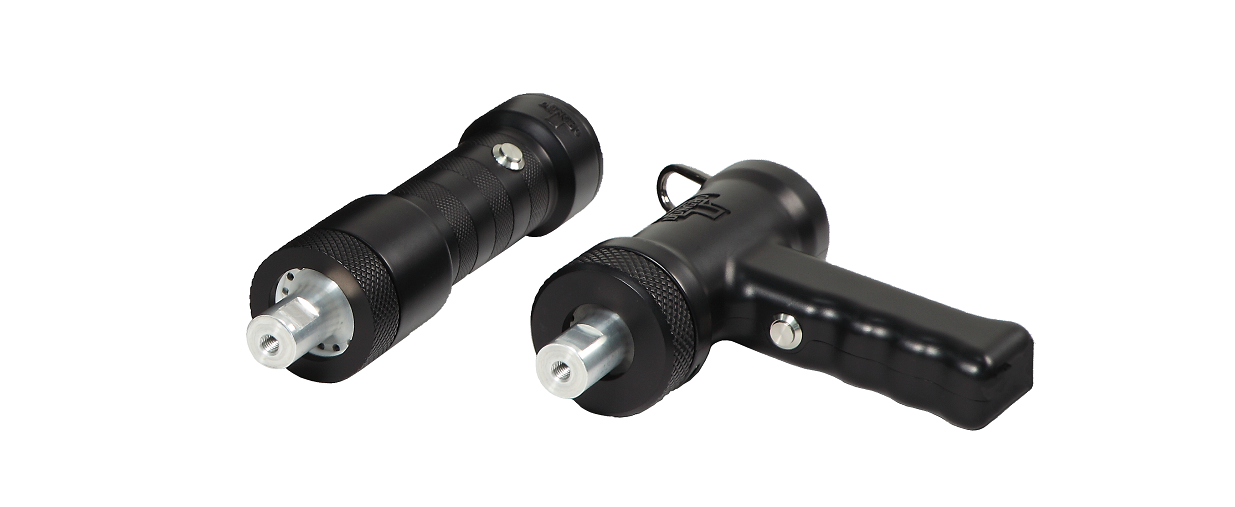

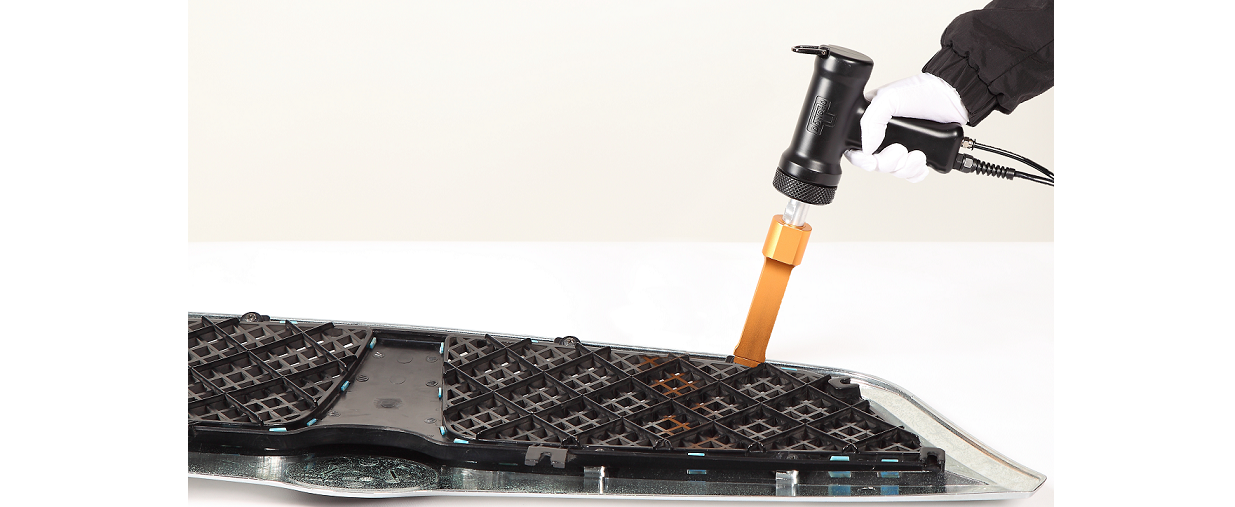

The GSH series ultrasonic welder can be configured as an straight type, gun type or integrated into automation systems.Suitable for single material and small series material process and repair, Can be used for spot welding, crimping, riveting or cutting smaller spaces with sturdy and reliable welding results.
Specifications
| Model: GSH | Frequency: 20, 35KHz | Power: 1000W–2000W |
| Voltage: AC220V | Operating Way: Hand-held gun type, hand-held straight type | Operating Device: 7" color touch screen |
- The sixth generation iQS operating system, multi-level password protection
- Welding process quality control, support scanning gun data traceability
- Programmable 10%-100% amplitude adjustment, welding program can save 99 groups
- Welding mode: energy mode, time mode and manual
-
