Ultrasonic Fabric Lace Sewing Machine KS85

Part number: uflsmks85

RM 20.00

WhatsApp Enquiry Make Enquiry

Features

  • Uses ultrasonic energy to cut, weld, seal, seam, hole, emboss, stitch, slit, form, color, and fold.
  • No traditional needle & thread required.
  • No dissipated edge, wrinkle, or shrinkage.
  • Can run continuously for mass production and handle curves; rollers are easy to change.
  • Can print color onto laces with colored paper.

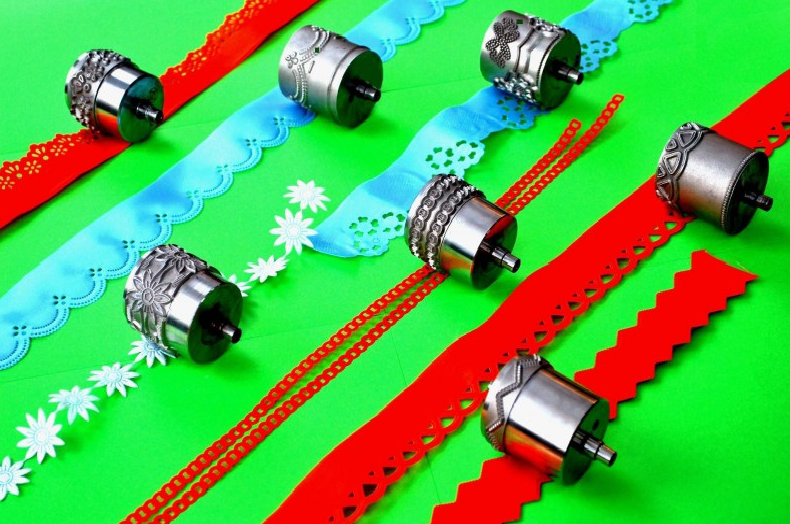

  • Thousands of pattern roller designs are available, made with precision sculptural molds.

Suitable Materials

  • Fabrics with over 65% synthetic composition: polyester, nylon, tetoron, TC, sponge, non-woven fiber.
  • Thermoplastic films, steel wire feed, hot printing paper.

Applications

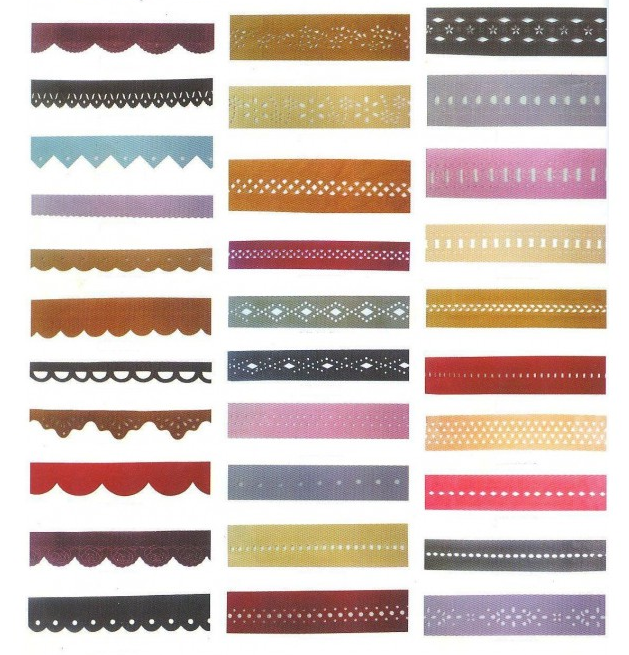

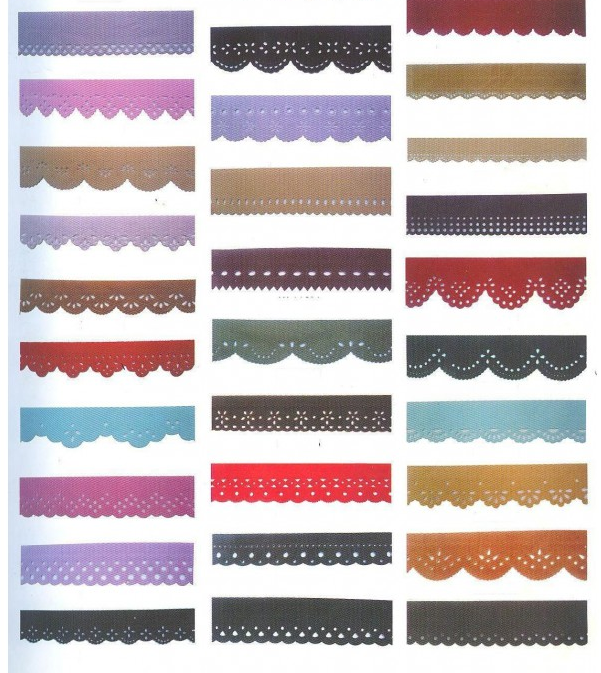

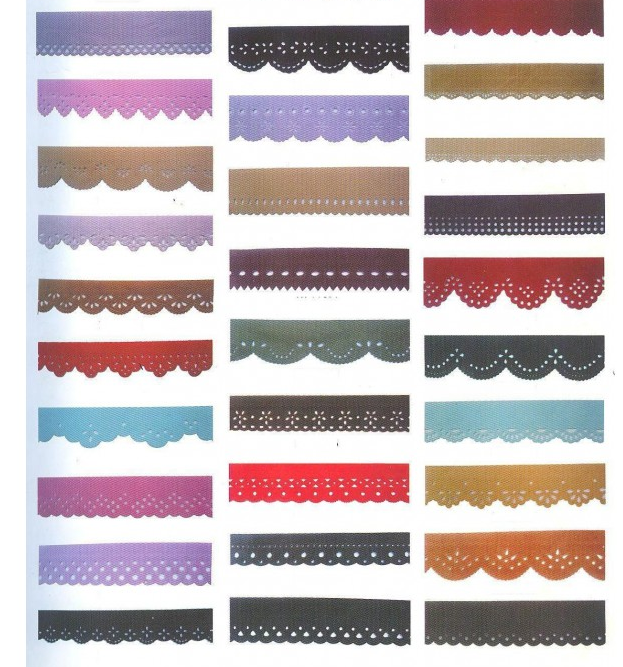

  • Lace clothes, sport wear, garments, dolls, gloves, tablecloths, chair and bed covers, pillow covers, window curtains.

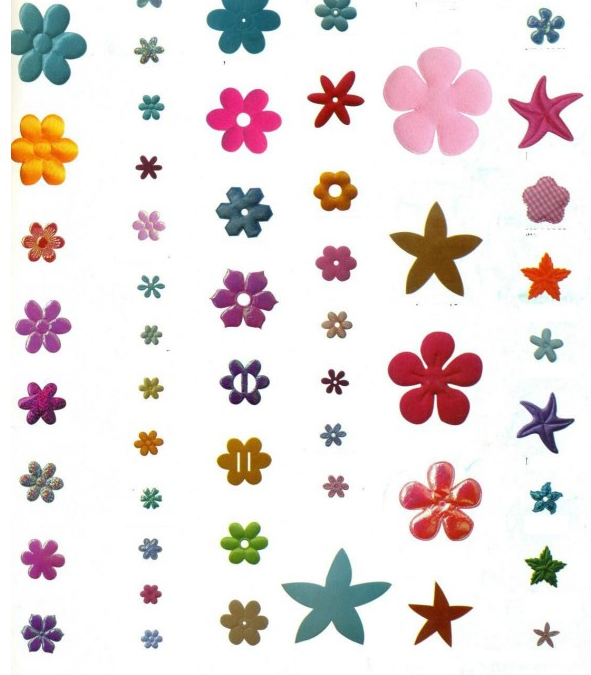

  • Non-woven masks, packing ribbons, Christmas ornaments, flower-shaped items, and formed animals.

Specifications

MODEL NO. KS-82 KS-85 KS-72 KS-200A KS-200A ARCH
OUTPUT POWER 1400 W 1400 W 1400 W 2000 W 3000 W
FREQUENCY 20 KHz 20 KHz 20 KHz 20 KHz 20 KHz
WORKING SPEED 0–18 m/min 0–18 m/min 0–18 m/min 0–18 m/min 0–18 m/min
WELDING WIDTH 1.0–48 mm 1.0–70 mm 1.0–35 mm 1.0–150 mm 1.0–200 mm
ALTERNATIVE ROLLER 1”, 2” 1”, 2” 2”, 3” 3” 8”
LINE SOURCE 220V 1P 10A 220V 1P 10A 220V 1P 10A 220V 1P 10A 220V 1P 10A
WORKING TABLE (mm) W1200 x L550 W1200 x L550 W1200 x L550 W1200 x L600 W1800 x L600
AIR SOURCE 7 Kg/cm² 7 Kg/cm² 7 Kg/cm² 7 Kg/cm² 7 Kg/cm²
NET WEIGHT 130 Kg 150 Kg 250 Kg 250 Kg 400 Kg
DIMENSIONS (mm) W1200 x L550 x H1100 W1200 x L550 x H1100 W1200 x L550 x H1100 W1400 x L600 x H1200 W1800 x L600 x H1400
THICKNESS OF MATERIAL (mm) 0.03–2.0 mm 0.03–1.5 mm 0.03–1.0 mm 0.03–1.0 mm 0.03–1.0 mm


Download Roller Drawing PDF

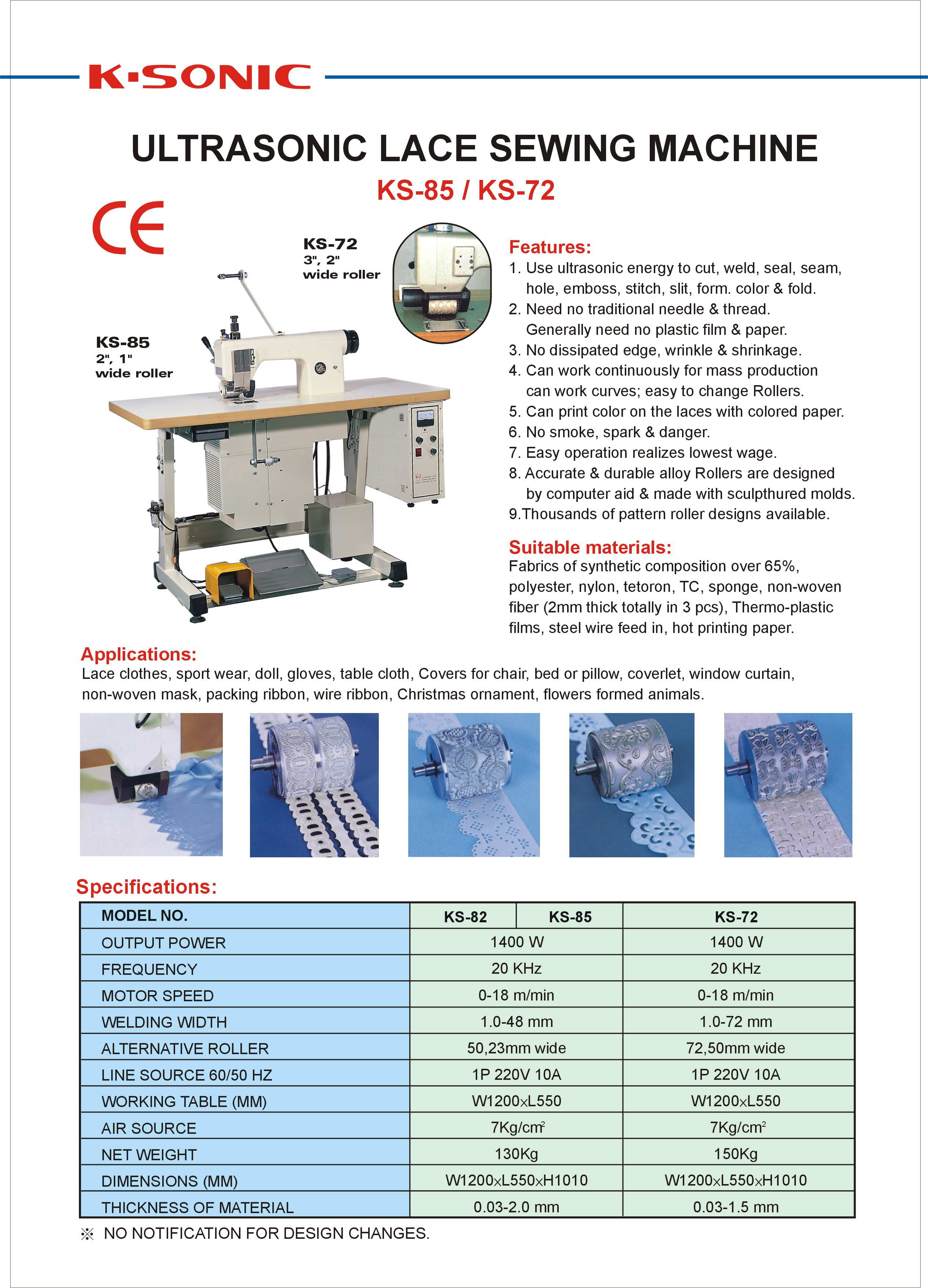

Download Ultrasonic Lace Sewing KS82 KS85 KS72 KS200 PDF

Download Ultrasonic Roller Pattern Book PDF
