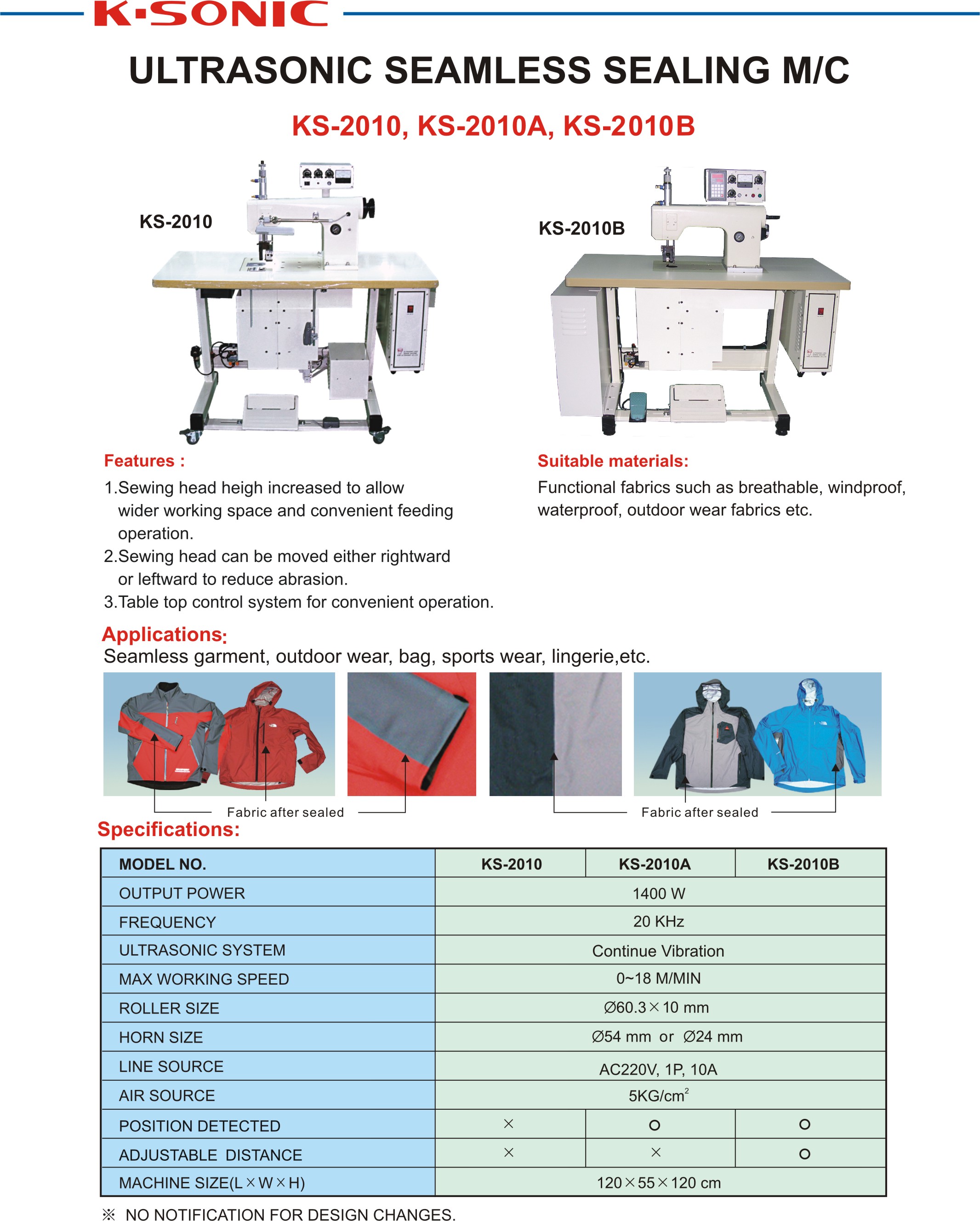

Ultrasonic Fabric Sealing Machine KS2010
Features
- Sewing head height increased to allow wider working space and convenient feeding operation.
- Sewing head can be moved either rightward or leftward to reduce abrasion.
- Table top control system for convenient operation.
Suitable Materials
- Functional fabrics such as breathable, windproof, waterproof, outdoor wear fabrics etc.
Applications
- Seamless garment, outdoor wear, bag, sports wear, lingerie, etc.
Specifications
| MODEL NO. | KS-2010 | KS-2010A | KS-2010B |
|---|---|---|---|
| OUTPUT POWER | 1400 W | 1400 W | 1400 W |
| FREQUENCY | 20 KHz | 20 KHz | 20 KHz |
| ULTRASONIC SYSTEM | Continue Vibration | Continue Vibration | Continue Vibration |
| MAX WORKING SPEED | 0–18 M/MIN | 0–18 M/MIN | 0–18 M/MIN |
| ROLLER SIZE | Ø60.3 × 10 mm | Ø60.3 × 10 mm | Ø60.3 × 10 mm |
| HORN SIZE | Ø54 mm or Ø24 mm | Ø54 mm or Ø24 mm | Ø54 mm or Ø24 mm |
| LINE SOURCE | AC220V, 1P, 10A | AC220V, 1P, 10A | AC220V, 1P, 10A |
| AIR SOURCE | 5KG/cm² | 5KG/cm² | 5KG/cm² |
| POSITION DETECTED | × | × | ○ |
| ADJUSTABLE DISTANCE | × | × | ○ |
| MACHINE SIZE (L×W×H) | 120 × 55 × 120 cm | 120 × 55 × 120 cm | 120 × 55 × 120 cm |
Download Ultrasonic Seamlmess KS2010 KS3010 PDF
-
