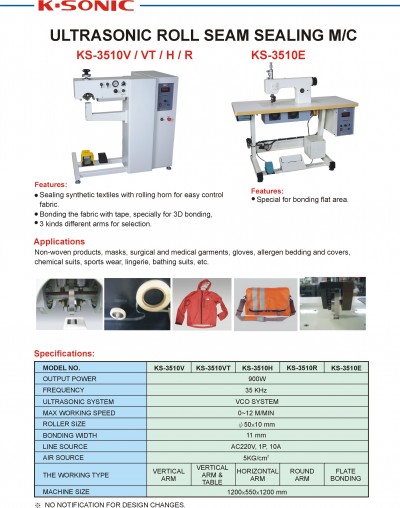

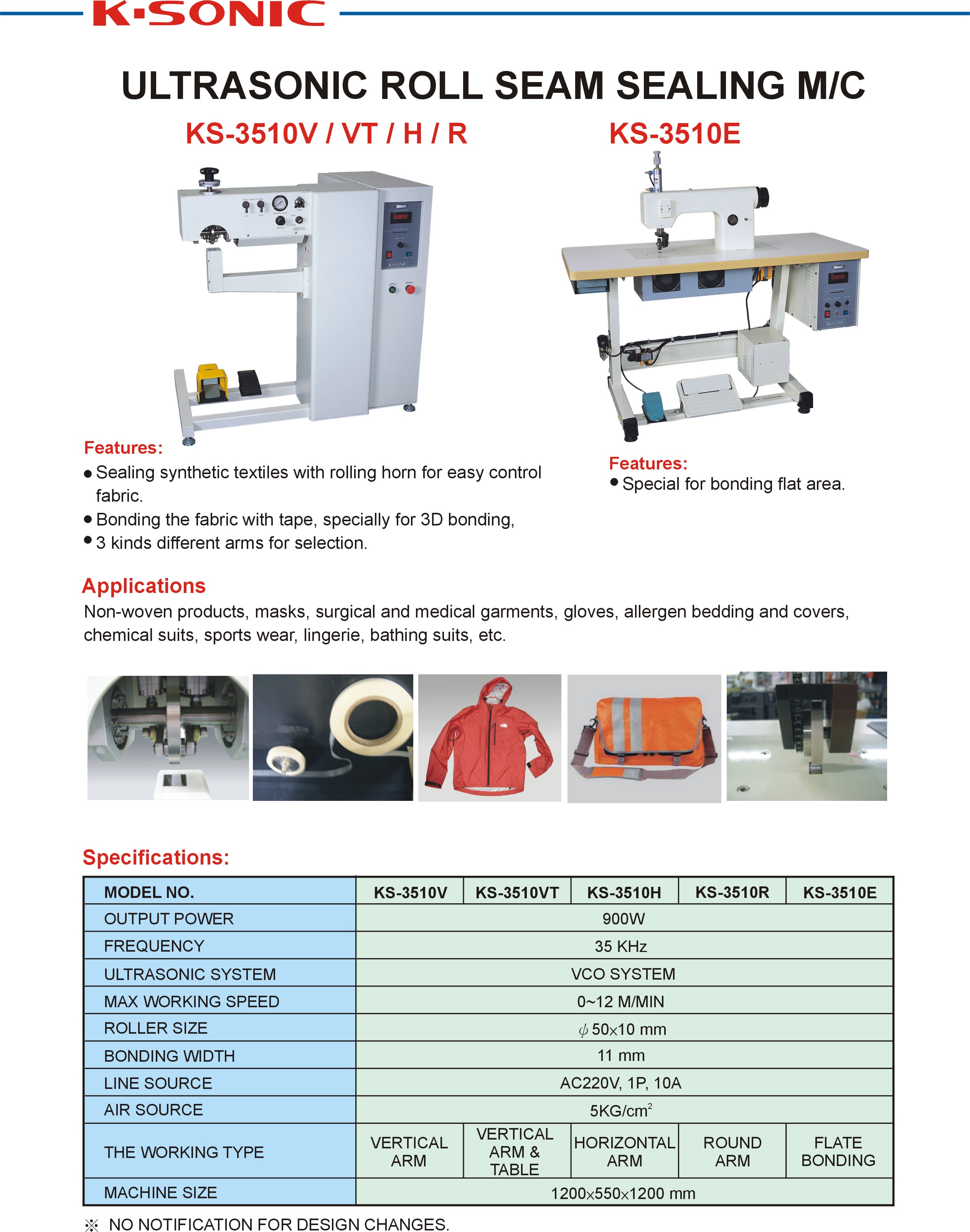

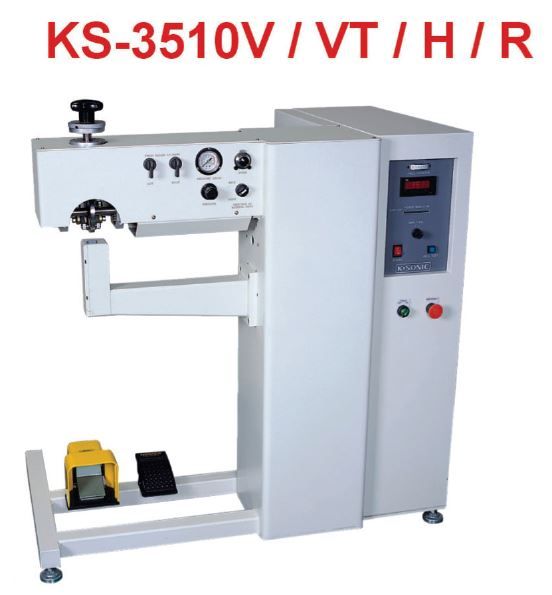

> > > Ultrasonic Fabric Roll Seam Sewing Machine KS3510V

Ultrasonic Fabric Roll Seam Sewing Machine KS3510V

Non-woven products, masks, surgical and medical garments, gloves, allergen bedding and covers, chemical suits, sports wear, lingerie, bathing suits, etc.

MODEL NO.	KS-3510V	KS-3510VT	KS-3510H	KS-3510R	KS-3510E
OUTPUT POWER	900W	900W	900W	900W	900W
FREQUENCY	35 KHz	35 KHz	35 KHz	35 KHz	35 KHz
ULTRASONIC SYSTEM	VCO SYSTEM	VCO SYSTEM	VCO SYSTEM	VCO SYSTEM	VCO SYSTEM
MAX WORKING SPEED	0~12 M/MIN	0~12 M/MIN	0~12 M/MIN	0~12 M/MIN	0~12 M/MIN
ROLLER SIZE	φ 50×10 mm	φ 50×10 mm	φ 50×10 mm	φ 50×10 mm	φ 50×10 mm
BONDING WIDTH	11 mm	11 mm	11 mm	11 mm	11 mm
LINE SOURCE	AC220V, 1P, 10A	AC220V, 1P, 10A	AC220V, 1P, 10A	AC220V, 1P, 10A	AC220V, 1P, 10A
AIR SOURCE	5KG/cm²	5KG/cm²	5KG/cm²	5KG/cm²	5KG/cm²
THE WORKING TYPE	VERTICAL ARM	VERTICAL ARM & TABLE	HORIZONTAL ARM	ROUND ARM	FLATE BONDING
MACHINE SIZE	1200×550×1200 mm	1200×550×1200 mm	1200×550×1200 mm	1200×550×1200 mm	1200×550×1200 mm
