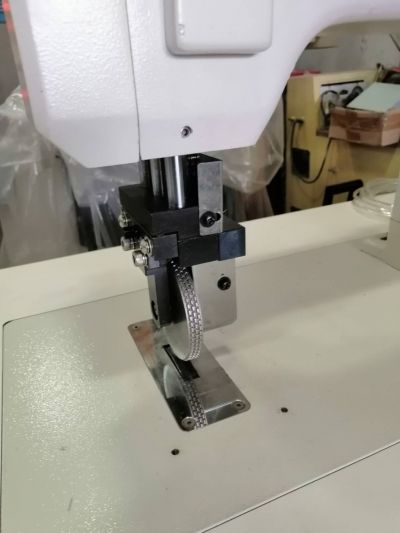

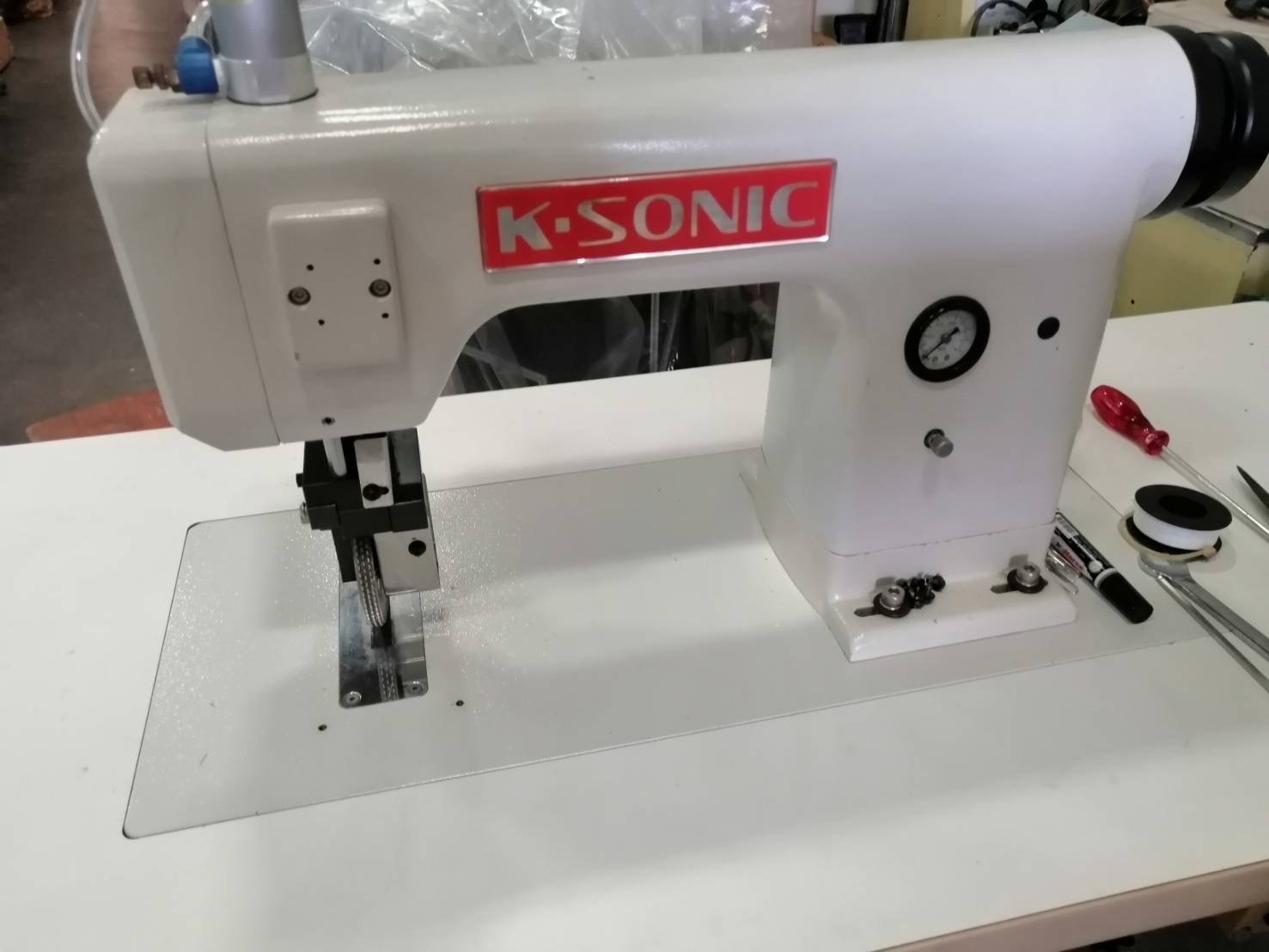

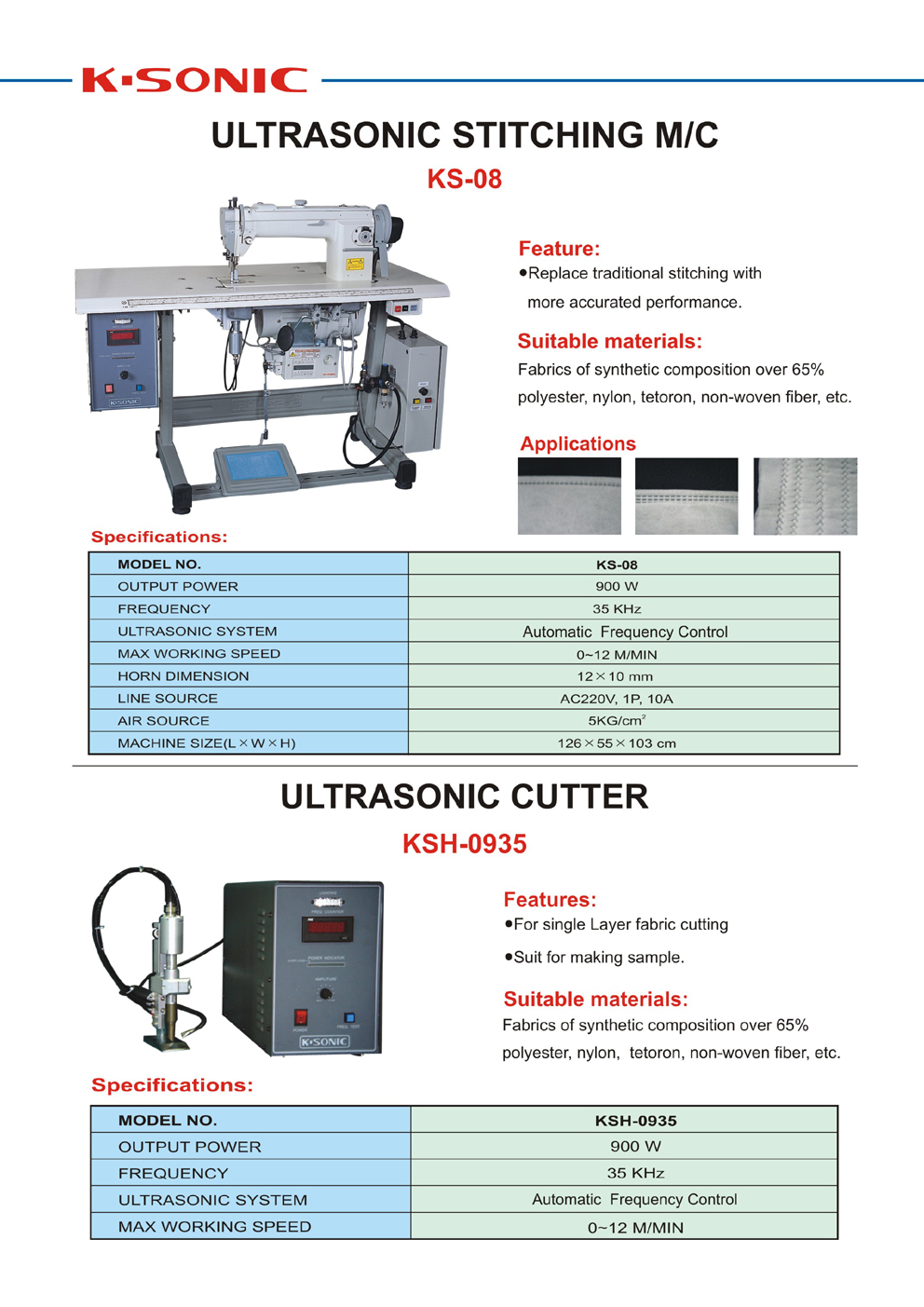

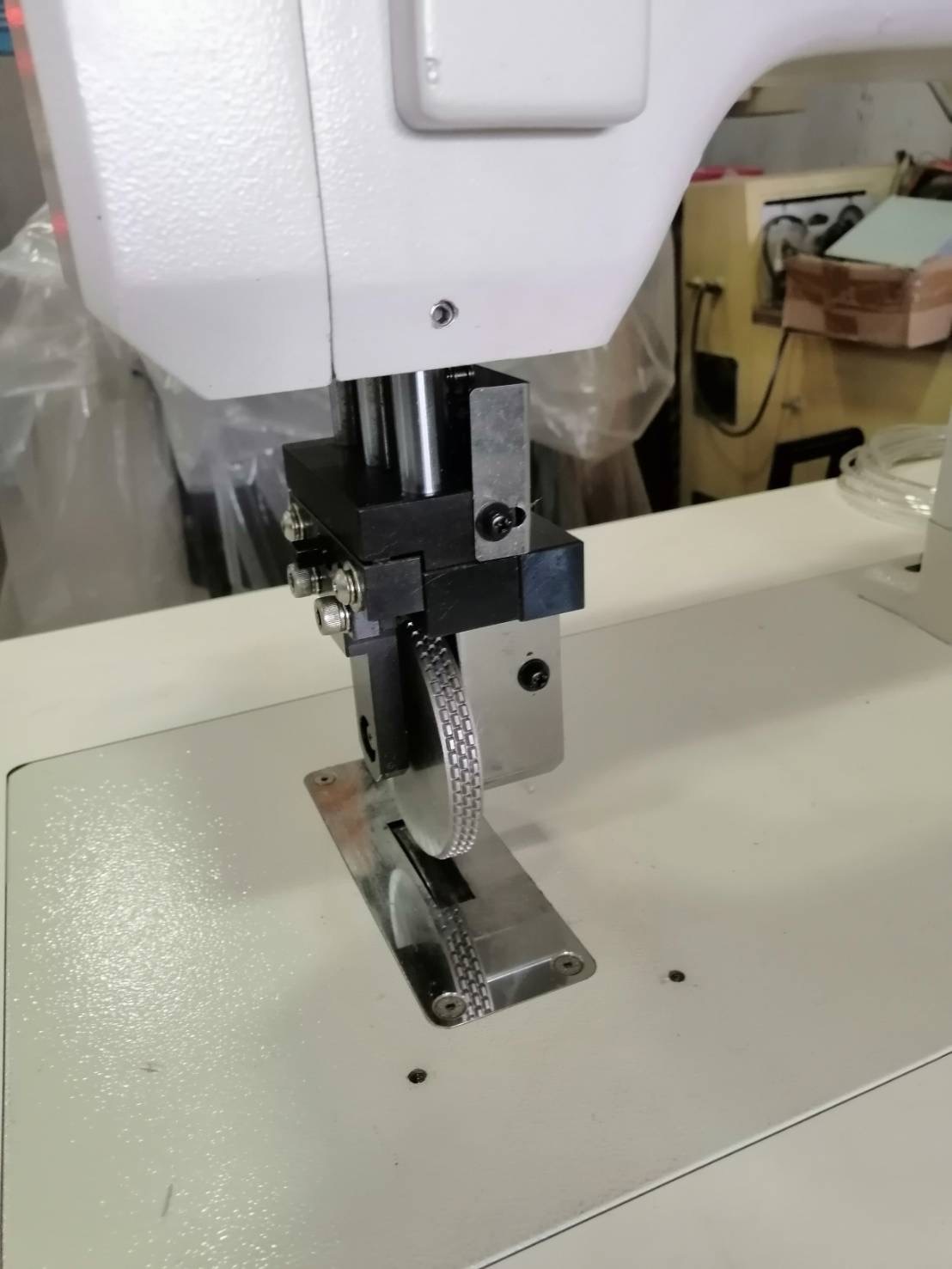

Ultrasonic Fabric Stitching Machine KS08
Ultrasonic Stitching M/C KS-08
Features
- Replace traditional stitching with more accurate performance.
Suitable Materials
- Fabrics of synthetic composition over 65%: polyester, nylon, tetoron, non-woven fiber, etc.
Applications
- Stitching applications for garments, accessories, and other textile products.
Specifications
| MODEL NO. | KS-08 |
|---|---|
| OUTPUT POWER | 900 W |
| FREQUENCY | 35 KHz |
| ULTRASONIC SYSTEM | VCO SYSTEM |
| MAX WORKING SPEED | 0~12 M/MIN |
| HORN DIMENSION | 12 × 10 mm |
| LINE SOURCE | AC220V, 1P, 10A |
| AIR SOURCE | 5KG/cm² |
| MACHINE SIZE (L × W × H) | 126 × 56 × 103 cm |
Ultrasonic Cutter KSH-0935
Features
- For single layer fabric cutting.
- Suitable for making samples.
Suitable Materials
- Fabrics of synthetic composition over 65%: polyester, nylon, tetoron, non-woven fiber, etc.
Specifications
| MODEL NO. | KSH-0935 |
|---|---|
| OUTPUT POWER | 900 W |
| FREQUENCY | 35 KHz |
| ULTRASONIC SYSTEM | VCO SYSTEM |
| MAX WORKING SPEED | 0~12 M/MIN |
Download Ultrasonic Stiching KS08 PDF
-
