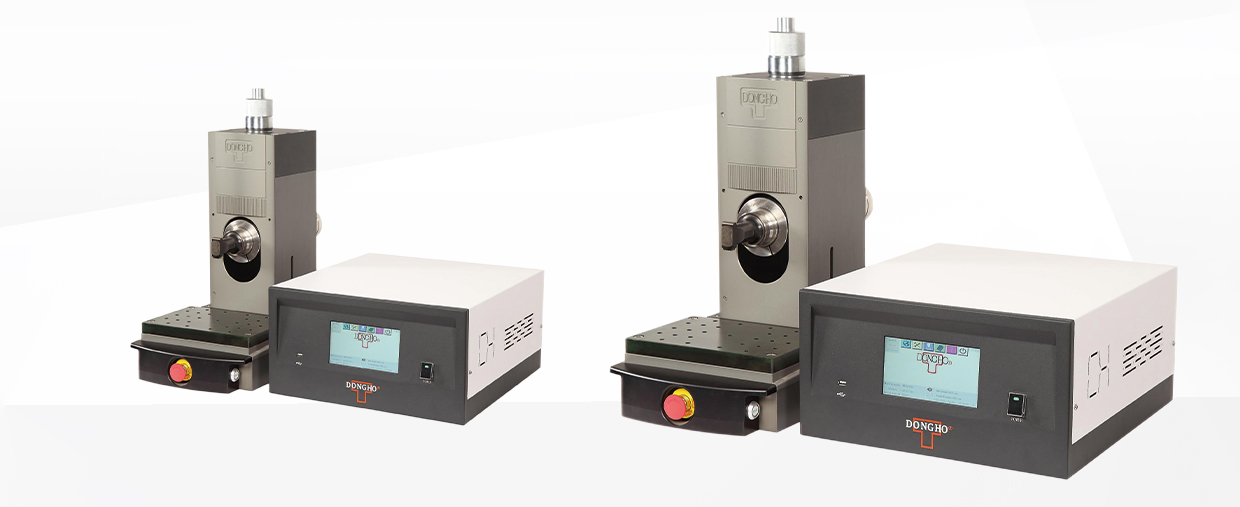

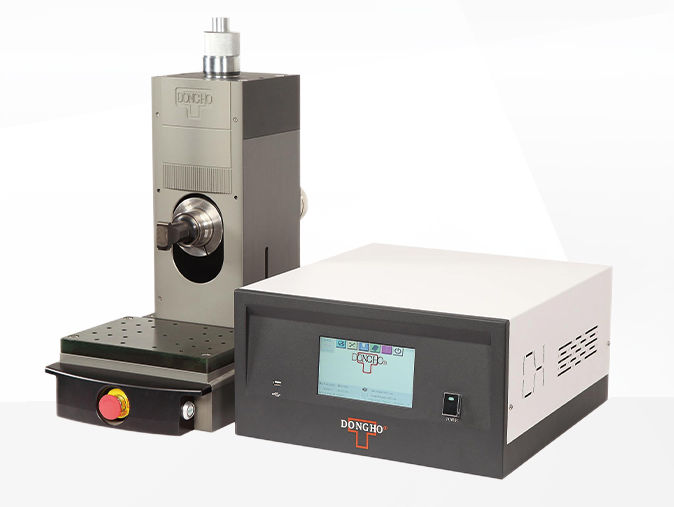

Ultrasonic Metal Welding Machine - iSW50 series

Part number: isw50

RM 20.00

WhatsApp Enquiry Make Enquiry

Ultrasonic Metal Welder

The iSW50 series ultrasonic metal welder features a modular design that can be easily expanded, with highly accurate path measurement and DONGHO proven Proportion Valve technology, multiple welding modes and stacking functions.Quality monitoring with graphical analysis, networked data storage function, intelligent quality management for customers.Photoelectric touch-sensitive system for safe operation.Data traceability and safety through Ethernet connectivity, support of Industry 4.0 applications and connection to MES system. Can be used in various metal welding fields such as: automotive industry, power batteries, consumer electronics, wire harness and terminal welding, motor industry, etc., and can meet the needs of various applications in the market.



Application

The iSW series is suitable for a wide range of applications including cable assembly and battery production, also including high voltage cables, battery terminals and battery connectors, all combinations of copper and aluminium are possible, especially complex hybrid connections, for both standard and special forms of battery cells.



Typical application
  • Super capacitor
  • Copper-aluminum welding
  • Stranded braided wire
  • Multi-strand wire splicing
  • Copper/Al soldering
  • Electrode welding of positive and negative poles
  • Stranded wires are soldered to standardized contacts
  • Cable connections for high current applications
  • Battery connection contacts
  • Battery connector



Specifications

Model: iSW50 Frequency: 20KHz Power: 3000–6000W
Voltage: AC220V–380V Max Stroke: 50mm Operating Device: 7" color touch screen





Main feature
  • The sixth generation iQS operating system, multi-level password protection and hierarchical authorization
  • Proportionvalve technology and high performance digital generator with high precision.
  • UTC embedded stacked series of high-end processors to achieve high-speed and extreme control
  • Multiple welding modes, digital amplitude setting, amplitude and distance segmental control.
  • Using graphic analysis for quality monitoring, supporting four brands of scanners.
  • Support MES, DPS system and self-developed DataLog with 5G application
